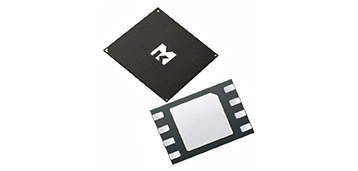

联系我们MK SD NAND is an extension of the memory card, can be directly patches, its internal integration performance of flash controller, compatible with SD agreement, to meet customer design requirements in miniaturization, differentiation, high reliability.
| Capacity | 1/2/4/8/32/64/128/256/512Gbit |
| Interface | SD2.0/SD3.0 |
| Read/write sequentially | up to class10,UHS-1,U3,V30 |
| Flash memory | SLC/pSLC/MLC/TLC |
| Working temperature | Commercial grade：-25℃ to +85℃ |
| Industrial-grade：-40℃ to +85℃ | |
| Package size | LGA8 6x8mm;LGA16 9x12mm |
| MK SD NAND Selection Guide | ||||||
| Type | Capacity | Part number | Flash Type | key Feature | Operation Temperature | Size |
Nano SD NAND | 16Gbit | MKDN016GCL-AA | MLC | C10, U1, V10, A2 Support 1.8v/3.3v I/O voltage | -25℃~85℃ | 9.0x12.5mm |
| 32Gbit | MKDN032GCL-AA | |||||
| 64Gbit | MKDN064GCL-AA | |||||
| 128Gbit | MKDN128GCL-ZA | TLC | C10, U3, V30, A2 LDPC ECC engine Support 1.8v/3.3v I/O voltage | -25℃~85℃ | 9.0x12.5mm | |
| 256Gbit | MKDN256GCL-ZA | |||||
| 512Gbit | MKDN512GCL-ZA | |||||
| 32Gbit | MKDN032GIL-AA | pSLC | Industrial grade; P/E Cycles 30,000 C10, U1, V10, A2 Support 1.8v/3.3v I/O voltage | -25℃~85℃ | 9.0x12.5mm | |
| 64Gbit | MKDN064GIL-ZA | |||||
| SD NAND | 1Gbit | MKDV1GIL-AST | SLC | Industrial wide temperature P/E Cycles 100,000 Data retention 10 years | -40℃~85℃ | 6.0x8.0mm |
| 2Gbit | MKDV2GIL-AST | |||||
| 4Gbit | MKDV4GIL-AST | |||||
| 8Gbit | MKDV8GIL-AST | |||||
| 1Gbit | MKDV1GCL-AB | SLC | P/E Cycles 60,000 | -25℃~85℃ | 6.0x8.0mm | |
| 2Gbit | MKDV2GCL-AB | |||||
| 4Gbit | MKDV4GCL-AB | |||||
| 8Gbit | MKDV008GIL-SSP | pSLC | Industrial grade; P/E Cycles 30,000 C10, U1, V10, A2 Support 1.8v/3.3v I/O voltage | -25℃~85℃ | 6.6x8.0mm | |
| 16Gbit | MKDV016GIL-SSP | |||||
| 32Gbit | MKDV032GIL-SSP | |||||
| 16Gbit | MKDV016GCL-STP | MLC | C10, U1, V10, A2 | -25℃~85℃ | 6.6x8.0mm | |
| 32Gbit | MKDV032GCL-STP | |||||
| 64Gbit | MKDV064GCL-STP | |||||
Wearable devices, video monitoring, high-end toys, music players and other audio and video products
